SPECIFICATIONS

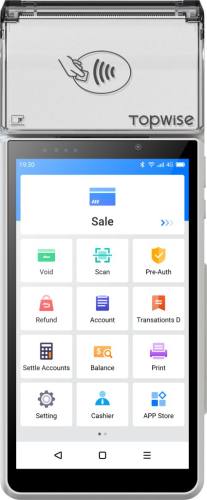

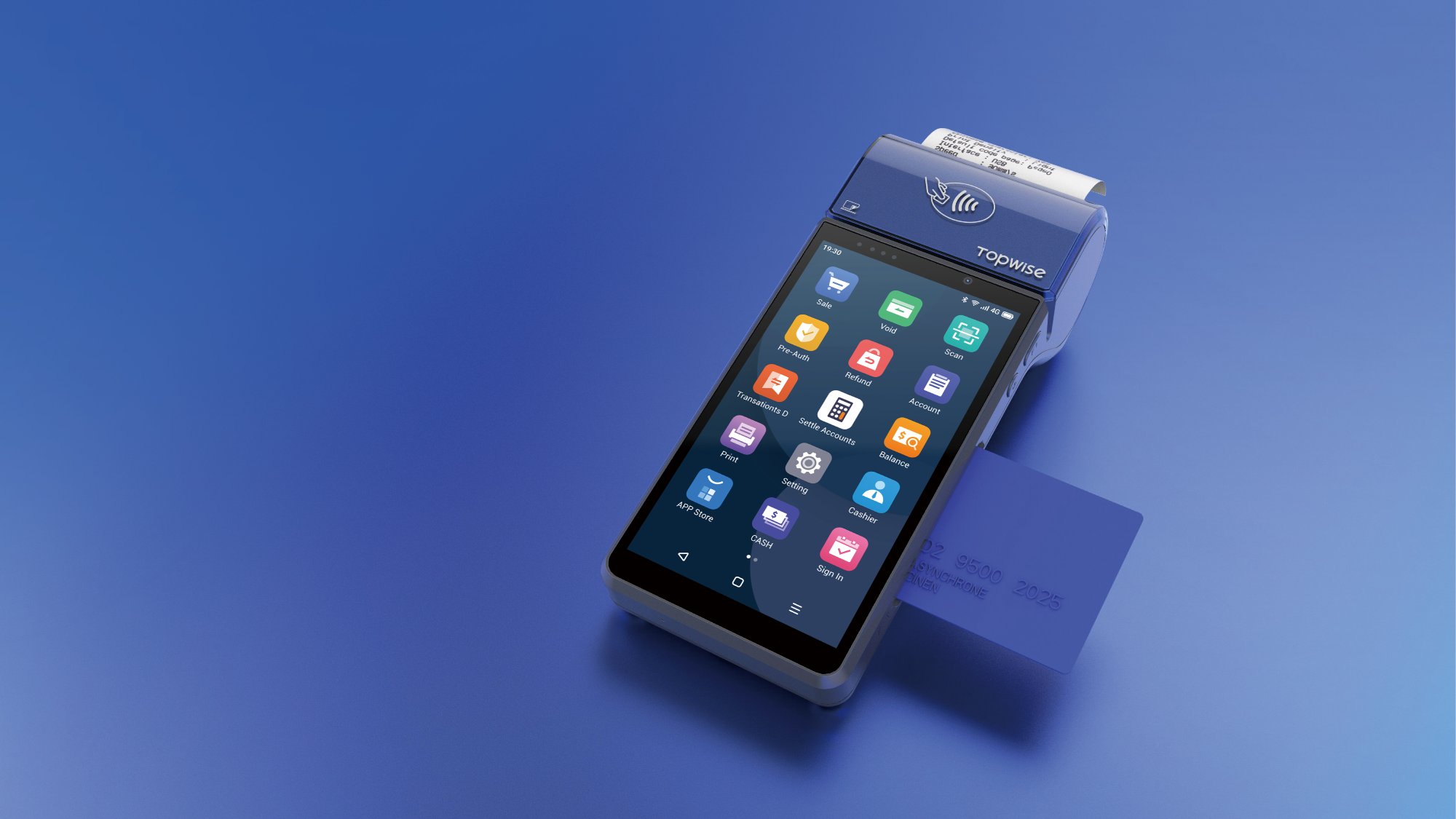

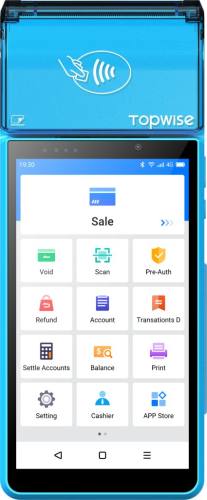

TOPWISE T1 Plus
OPERATING SYSTEM
- Android 11
Processor
- AP: Quad - Core Cortex A53 1.5GHz
- SP: RISC Core ( ARMv7 - M )
MEMORY
- 2GB RAM + 16GB Flash
MAIN DISPLAY
- 5.5”HD 1280*720 IPS Capacitive Multi-Touch Screen
PRINTER
- Print Speed: 80mm/s
- Paper roll: 58*40mm
CAMERA
- 5MP AF Rear-Facing
- 2 MP FF Front-Facing
PHYSICAL KEY
- Power X 1
- Function X 1
CARD READERS
- Chip & PIN
- NFC Contactless
- Magnetic Stripe
WIRELESS
- Wi-Fi 2.4GHz/5GHz
- Bluetooth 4.2(BLE)
MOBILE NETWORK
- 4G: LTE
- 3G: WCDMA
- 2G: GPRS/GSM
CARD SLOTS
- TF Card x 1
- SIM x 2 + PSAM x 1 or
- SIM x 1 + PSAM x 2
AUDIO
- Speaker x 1
POSITIONING
- GPS / GLONASS / BEIDOU
Fingerprint (Optional)
- Semi-conducting capacitive FBI and STQC Certified
PORT
- USB Type C x 1
POWER
- Battery: 3.8V/5000mAh | Adapter:5V/2A
Accessory (Optional)
- Base: Charge & USB/Charge & BT/Charge & LAN & USB
- Other: Silicone Case/Leather Case/Holder
PHYSICAL
- 194.7*80*25.6mm | 428g (including battery)
INDICATOR LEDs
- Red/Blue/Yellow/Green/Charging Led
ENVIRONMENT
- Operating temperature: -10°C ~ 50°C
- Storage temperature: -20°C ~ 70°C
- Relative humidity: 5%~95%(Non-condensing)
Certifications
- PCI 6 丨 EMV Contact L1 丨 EMV Contact L2 丨 EMV Contactless L1 丨 MasterCard TQM
- MasterCard PayPass 丨 Visa payWave 丨 Discover D-PAS 丨 American express 丨 UPI
- FCC 丨 RuPay 丨 PURE 丨 NSICC 丨 CE 丨 ROHS
